激光精密切割機是我司針對顯示面板行業、消費類電子行業、半導體行業等應用需求而開發的一款設備。其采用大理石龍門雙驅結構設計，配合自主開發的高性能運動控制系統和高質量激光器，具有運行穩定，經濟高效和切割質量高的特點，主要應用于SMT鋼網切割、FPC線路板切割、液晶面板顯示切割、玻璃切割等。

● 大理石床身，直線電機雙驅動，最大加速度3G

● CCD定位，自動糾偏

● 高精度PSO位置同步輸出，能量均勻

● Lyric Robot數字孿生技術，支持遠程維護

● 可搭載QCW脈沖激光器，單模光纖激光器、或皮秒激光器

● 應用于SMT鋼網切割、FPC線路板切割、液晶面板顯示切割、玻璃切割等

● 面向于顯示面板行業、消費類電子行業、半導體行業等

樣品展示

0.1mm厚鈦合金鉆孔，孔間距0.2mm

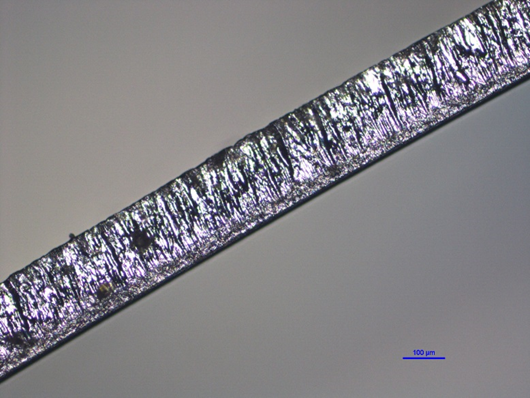

軟包電池鋁極耳切割

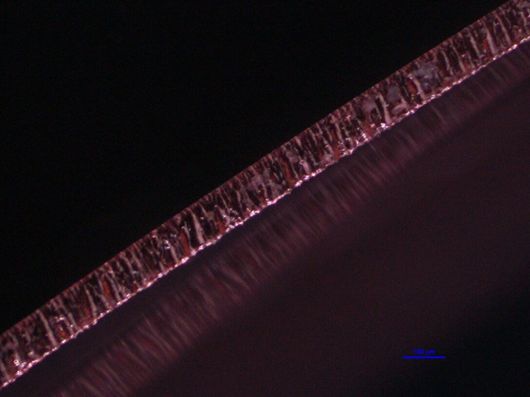

軟包電池銅極耳切割

切割幅面	500 mm×500 mm	激光器功率	450 W 500-2000 W 10-100 W
最大速度	80 m/min	圖形格式	DXF，CAD等
最大加速度	3G	工作環境	5°-35°，10%≤濕度≤95%，無凝露
定位精度	±0.004 mm	切割氣體類型	壓縮空氣/高純氮氣/高純氧氣
重復定位精度	±0.002 mm	切割氣體壓力	≤ 1 MPa
激光器類型	QCW激光器單模光纖皮秒激光器	設備功率	5 kW
設備電源	單相 AC220V / 50Hz	設備尺寸	1850 mm×1350 mm×2280 mm
設備重量	2.5 T	可選配置1	掃描振鏡切割頭
可選配置2	貝塞爾切割頭
